Bag Making Solutions

Built Around Your Pouch.

Precision bag making machinery for laminated pouches and plastic film bags — configured around your material, pouch structure, size and production goals.

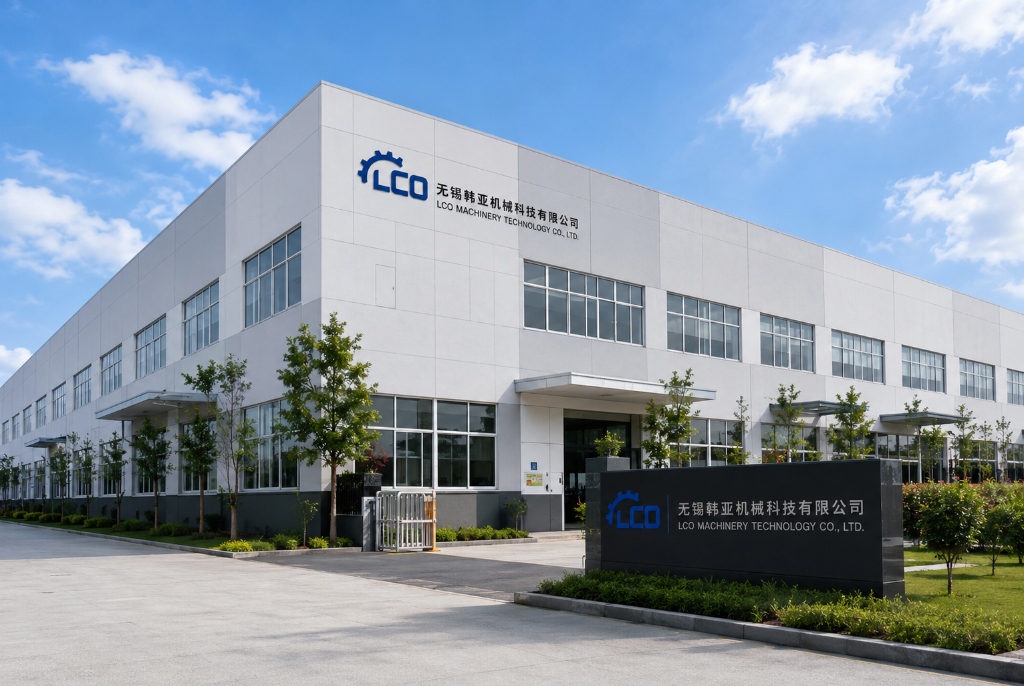

LCO Machinery Factory & Headquarters
Pouch
Converting Line + Finished Pouch
Configured Around Your Packaging
LCO MACHINERY TECHNOLOGY CO., LTD. Direct OEM Manufacturer · Modern Assembly & Testing Facility
ISO9001 & CE
Outcome-Driven Engineering

What Do You Want to Produce?

Do not start with machine model numbers. Start with your finished pouch. Select your package structure below to explore the dedicated LCO production line.

Explore All Pouch Solutions
Equipment Architecture

Two Distinct Converting Platforms

LCO engineers dedicated converting platforms for both high-barrier laminated packaging and high-volume polyethylene film conversions.

Compare Lineups
SYSTEM 01

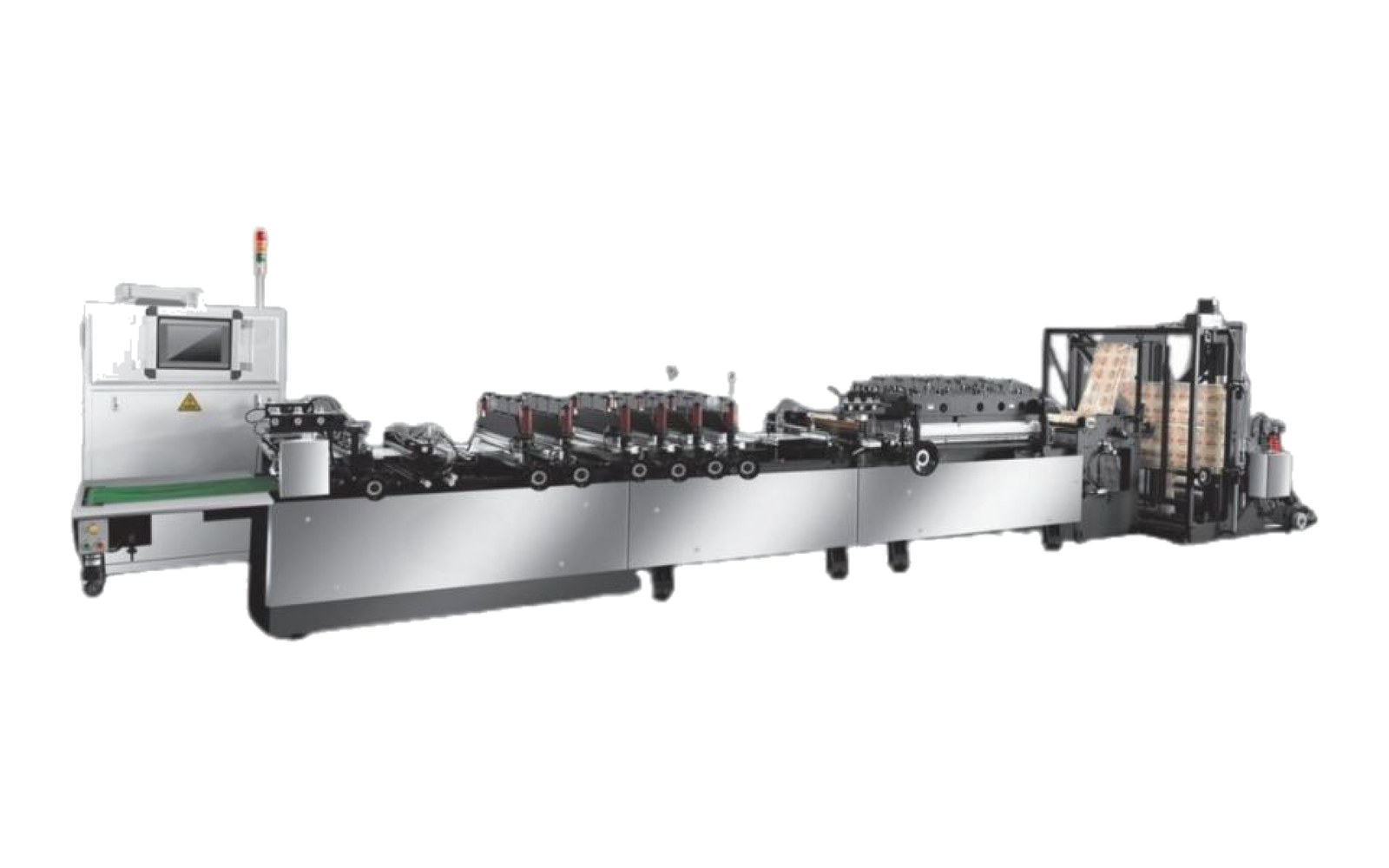

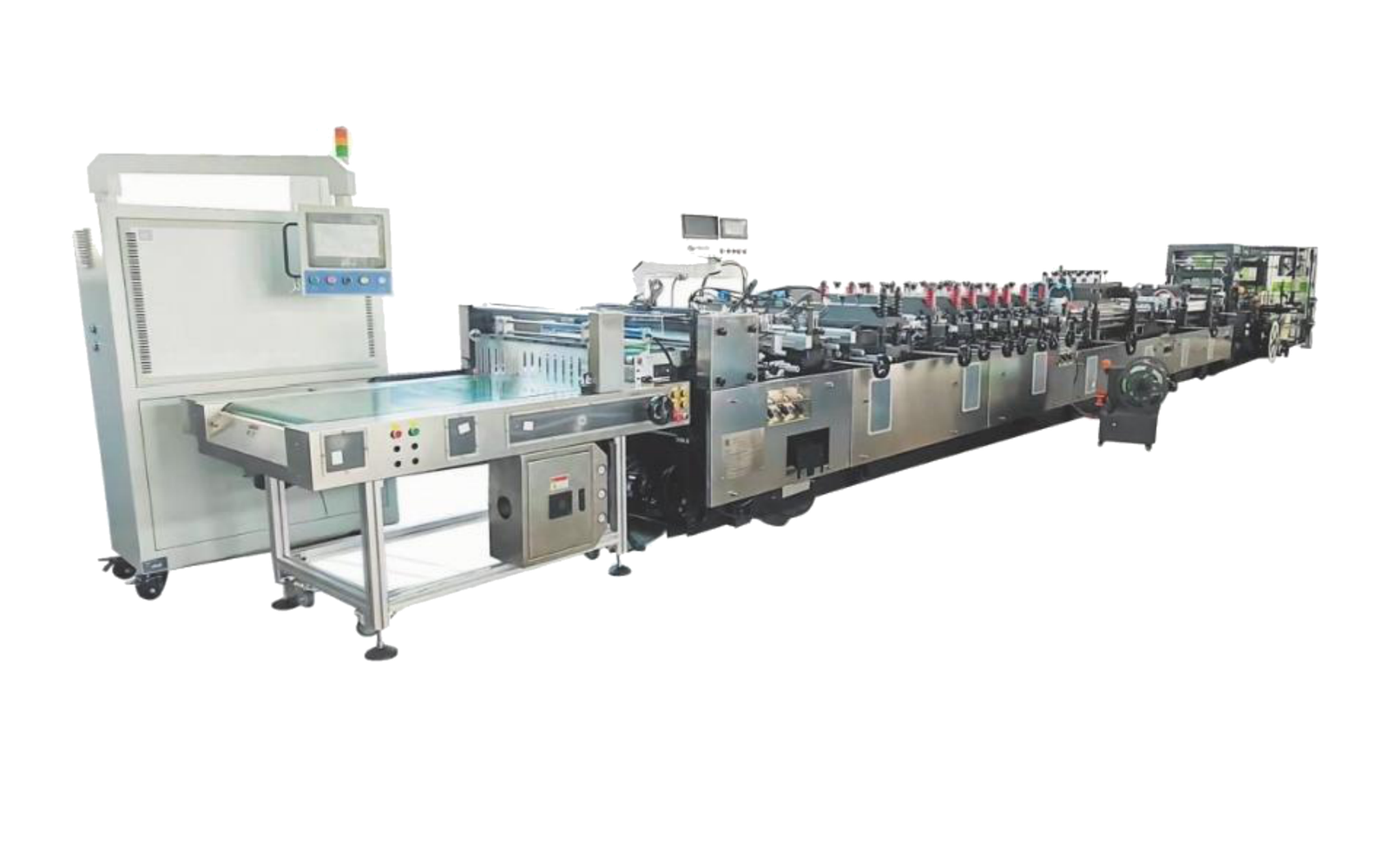

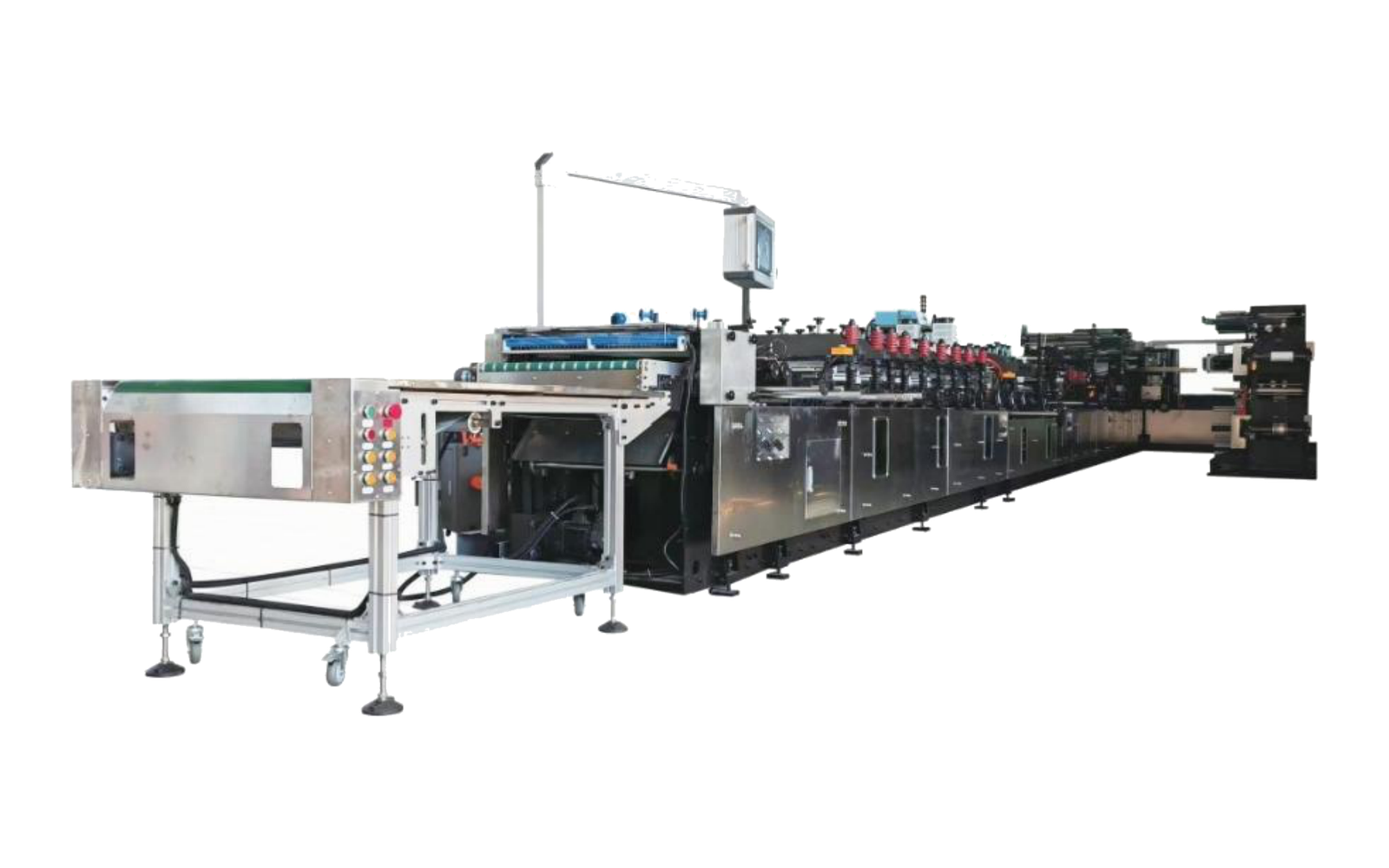

01 — Laminated Pouch Making Machines

High barrier laminated structures for food, pet food, medical, chemical and beverage packaging. Multi-servo drive with micro-tension balance.

Targeted Pouch Formats:
Stand-Up Pouch Zipper Pouch Three-Side Seal Pouch Center Seal Pouch Side Gusset Pouch Flat Bottom / Box Pouch Four-Side Seal Pouch
SYSTEM 02

02 — Plastic Film Bag Making Machines

High-speed rotary and continuous motion converting for poly mailers, retail shopping bags, industrial heavy liners and roll packaging.

Targeted Bag Formats:
Side Seal Bags Bottom Seal Bags T-Shirt / Vest Bags Handle Bags Courier Bags Garbage Bags Bags on Roll PE Zipper Bags Industrial / Liner Bags

Featured Machine Models

High-precision web handling with synchronized multi-axis servo motors, independent heat zone controllers, and intuitive touchscreen recipe control.

View All Machines (5)
SW-CR630 Series 02 Film Bag
Wicket Chicken Bag Making Machine

SW-CR630 Series

Engineered for high-speed specialty bag production including wicket-stacked chicken bags, bakery bread bags, and round or square bottom perforated-lip bags. The SW-CR630 integrates servo-driven web feeding, customizable Ø 5 – 12 mm wicket hole punching with adjustable 50 – 200 mm hole pitch, precision 20 – 100 mm lip height forming with perforated tear line, and automated wicket stacking for HDPE, LDPE, and PP films.

Up to 250 bags / min HDPE, LDPE, PP, etc. (0.025 – 0.08 mm)
SW-KR Series 02 Film Bag
Double-Lane Courier Bag Making Machine

SW-KR Series

Built for courier and mailing bags. Two production lanes on a single machine double your output from one line. Available in SW-KR400×2 and SW-KR530×2 configurations, this dual-lane converting platform processes co-extruded security film with waybill pocket area and applies a self-seal adhesive strip with release liner, flap fold, and hermetic side seals at up to 240 × 2 pcs / min.

240 × 2 pcs / min Co-extruded PE Film (Courier & Mailing Bags)
SW-TR730 Series 02 Film Bag
Soft Loop Handle Bag Making Machine

SW-TR730 Series

Engineered for premium retail shopping bags, garment bags, and gift bags in LDPE and HDPE film (0.04 – 0.10 mm). The Model SW-TR730 integrates a Panasonic PLC with touch-screen HMI on a laser-cut steel-plate frame, servo-driven feed rollers, single-film folding, tubular-film opening, W-gusset bottom forming, double-fold mouth sealing, hole punching, and fast, reliable fully automatic soft-loop handle welding.

50 – 100 pcs / min LDPE, HDPE (0.04 – 0.10 mm)
SW-ZL530 Series 02 Film Bag
Diaper Bag Making Machine

SW-ZL530 Series

Designed for hygiene, diaper, napkin, and garment LDPE film packaging bags (0.03 – 0.08 mm). The SW-ZL530 combines a Panasonic PLC and touch-screen HMI on a laser-cut steel-plate frame with four servo motors driving the feed. It features servo film feeding with automatic patch application and heat spot-sealing, automatic hole punching, photoelectric unwind speed regulation, air-shaft unwind roll loading, and a durable, stable cold-cutting unit.

50 – 150 pcs / min LDPE Film (0.03 – 0.08 mm)
SW-DS Series 02 Film Bag
Multifunction Folding Machine

SW-DS Series

Built for folding OPP, CPP, PE, and POF film at production speeds up to 300 m / min. Available in SW-DS1460 (1380 mm bag width) and SW-DS1600 (1580 mm bag width), this multifunction folding machine features synchronized unwind and rewind motors, pneumatic shaftless loading with automatic jumbo-roll lifting, automatic constant tension on unwind and rewind, EPC web guiding, inverter-driven pull rolls, and a multi-function controller with automatic counting.

300 m / min OPP / CPP / PE / POF Film
Free Factory Sample Evaluation

Send Us Your Pouch Samples

Send your physical pouch samples or CAD packaging drawings to our engineering team in Wuxi. We will perform tensile seal testing, compute optimal cycle speeds, and deliver a comprehensive machine configuration proposal.

What You Will Receive:

Sealing integrity & dwell time laboratory report
Machine production speed & cycle rate calculation
Customized plant floor CAD drawing & line layout
Complete quotation with tooling & optional modules
CE Certified
CE CONFORMITY
Directive 2006/42/EC (Machinery Safety)
ISO 9001
ISO 9001:2015
Certified Quality Management System
